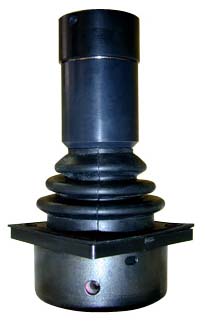

CTI's precision control industrial joysticks (F Series mini joysticks) feature a non-contacting design, which ensures a much longer lifespan than other types of joysticks. These analog industrial joysticks are extremely precise, highly reliable, rugged, drift-free, and rated to 10 million operations. With the smallest footprint and below-panel depth in its class, the F1000 Series truly sets the standard for industrial-grade miniature joysticks. High-quality design provides an excellent feel, which is very responsive to touch and more user-friendly than a touchpad. CTI's OEM joysticks are NEMA 12 (IP54) sealing and offer the following options; protection from extreme operating temperatures, protection from EMI, and a redundant safety feature. These rugged joysticks are ideally suited for harsh environments, precision instruments, and restricted spaces (e.g. wheel chair joysticks). CTI's OEM industrial joysticks are also available as USB FlightSticks. These Joysticks also uses the same USB HID Compliant Game Controller technology as a Micorsoft Sidewinder®.
F1800 Industrial Joysticks Technical Drawing (PDF)

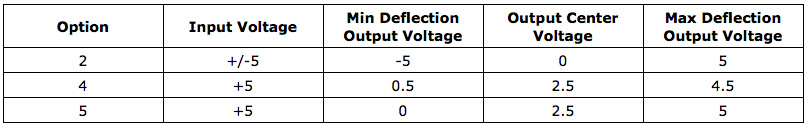

F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - Three Axes NEMA 12 (IP54) Specifications (PDF)
How to Select an Industrial Joystick (PDF)
|
